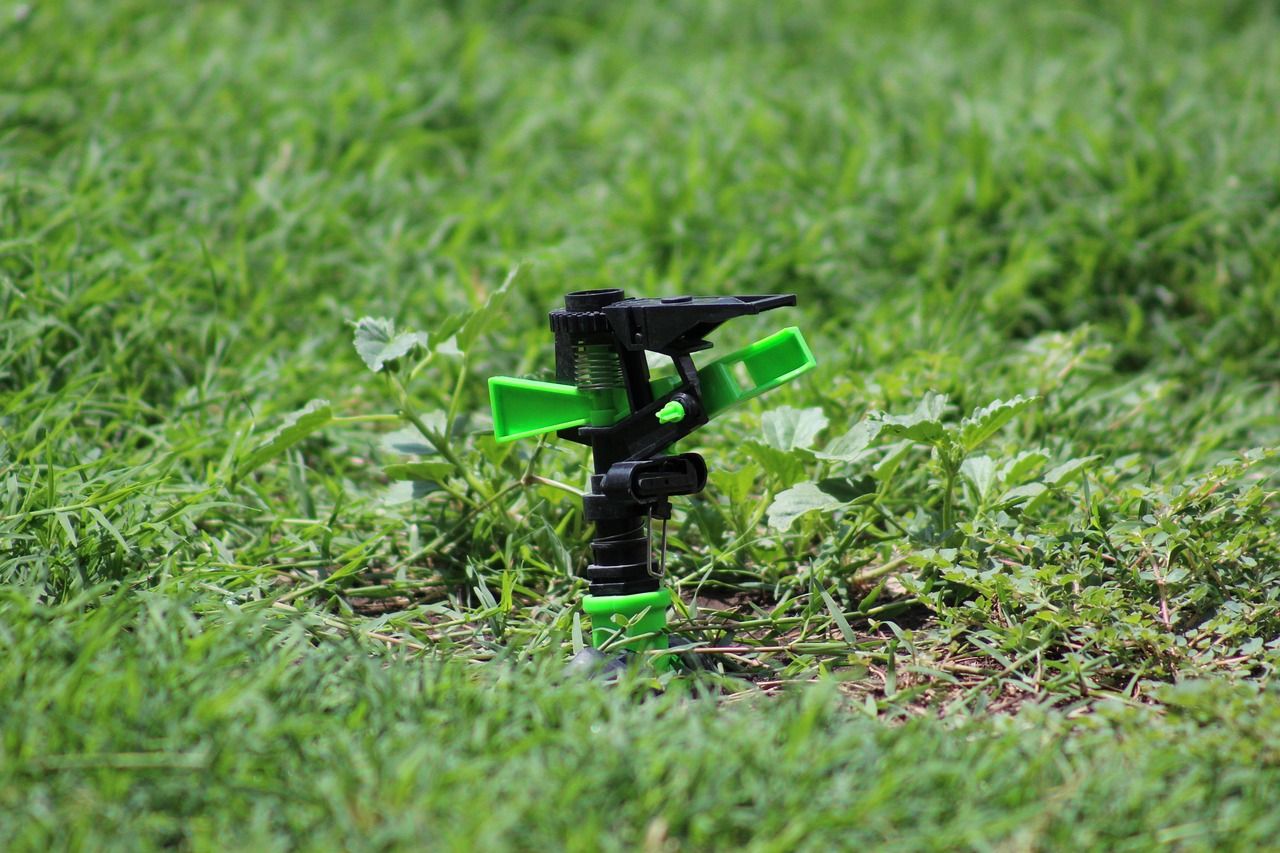

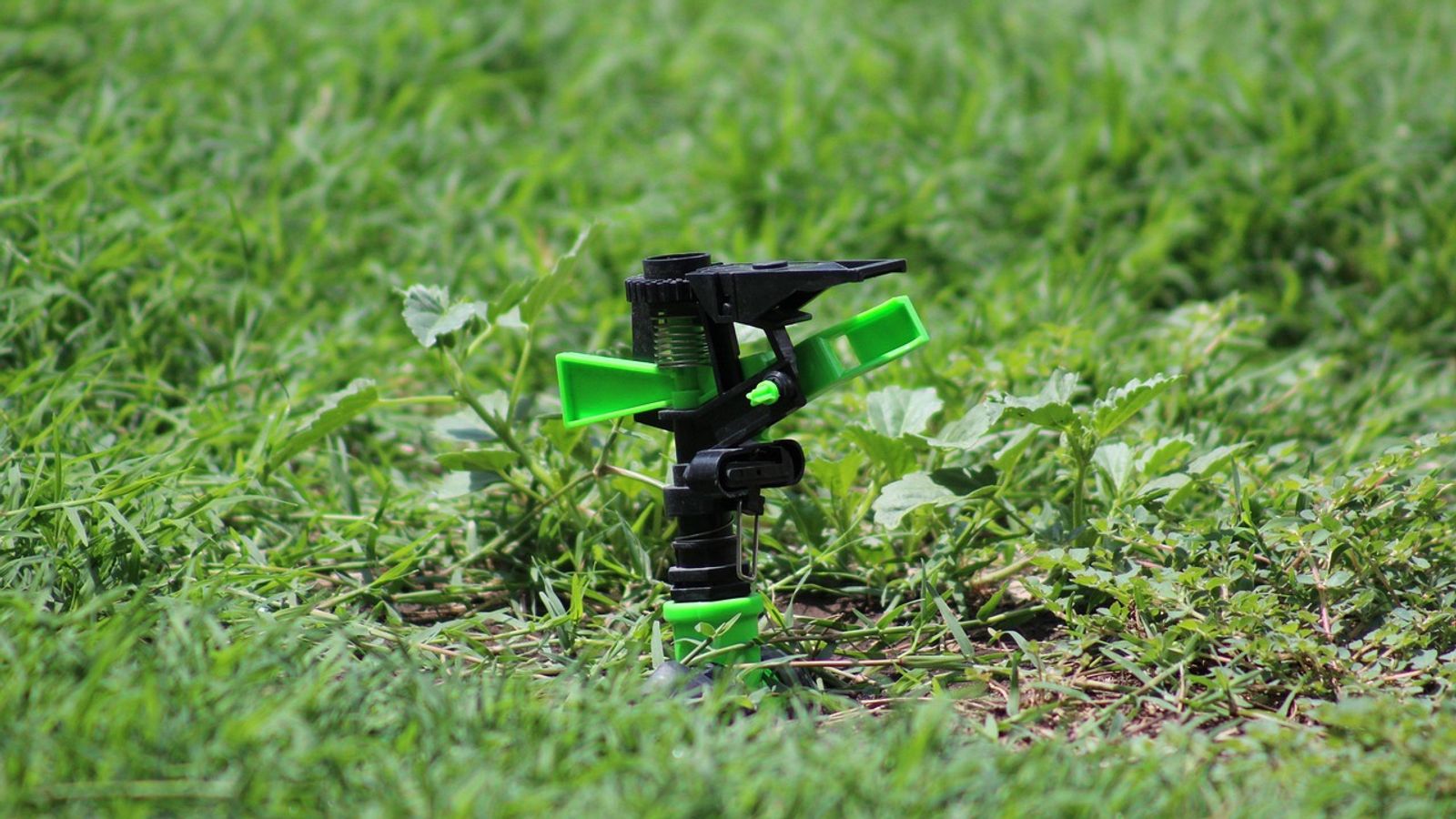

Plan a Sprinkler-System Troubleshooting Walkthrough by Zone

Prepare

Tools and materials

• Multimeter (AC voltage measurement)
• Flathead screwdriver
• Wire brush or pick
• Notepad or smartphone
• Work gloves
• Towel
• Shovel or trowel (if digging required)
• Flags or markers
• Straight-sided containers (for coverage testing)
• Waterproof wire connectors (if wire repair needed)

Step by step

How to approach the work

1. 1

   Activate the first zone using the controller's manual test mode

   Select zone one on your controller and start a manual test cycle. Walk immediately to the area served by that zone and observe whether sprinkler heads activate. Note the time it takes from controller activation to water flow, which should be 10 to 20 seconds for most systems. If the zone does not start within 60 seconds, stop the test and mark the zone as non-functional for further investigation.

2. 2

   Observe and document the zone's spray pattern and coverage

   Walk through the active zone and watch each sprinkler head. Look for heads that fail to pop up, spray in the wrong direction, produce mist instead of solid streams, or create puddles from excessive pressure. Note any dry spots that receive no water and any areas where spray overlaps excessively. Take photos or make sketches showing problem locations so you can return to them after testing all zones.

3. 3

   Check for visible leaks or pressure loss in the zone

   While the zone runs, inspect the ground for geysers, bubbling water, or unusually wet areas that indicate broken pipes or fittings. Look along the path between the valve box and sprinkler heads for depressions or extra-green grass that suggest slow underground leaks. If you find a major leak with water shooting above ground, turn off the system immediately and mark the location for repair.

4. 4

   Test the controller output voltage for the zone

   Turn off power to the controller at the circuit breaker, then open the controller cabinet and locate the terminal wires for the zone you just tested. Turn the power back on and set your multimeter to measure AC voltage. Touch one probe to the zone terminal and the other to the common terminal while manually activating that zone. You should read between 24 and 28 volts AC when the zone is on and near zero when off; readings outside this range indicate controller or wiring problems.

5. 5

   Locate and inspect the zone's valve

   Find the valve box for the zone, which is typically a plastic or concrete box buried near the area the zone serves. Remove the lid and clear away any dirt, mud, or debris covering the valve. Check that the solenoid is firmly threaded onto the valve body and that wires are connected to the solenoid terminals. Look for standing water in the box, which may indicate a leaking valve or poor drainage, and note any corrosion on wire connections.

6. 6

   Manually activate the valve to test mechanical function

   Locate the manual bleed screw or lever on the valve body, usually on top of the solenoid or bonnet. Turn the bleed screw counterclockwise one-quarter to one-half turn or lift the manual lever. Water should flow immediately to the zone's sprinkler heads. If water flows when manually activated but not when the controller runs the zone, the problem is electrical—either the solenoid, wiring, or controller output. If no water flows even with manual activation, the valve diaphragm is stuck or the supply to that valve is blocked.

7. 7

   Inspect and clean individual sprinkler heads in the zone

   Turn off the zone and examine each sprinkler head that showed problems during your observation. Unscrew the top cap or nozzle and rinse it under clean water to remove debris. Check the filter screen at the base of the head for clogs and clean it with a soft brush. Verify that pop-up heads move freely and that rotating heads spin without binding. Reassemble each head and test the zone again to confirm improved performance.

8. 8

   Record all findings and move to the next zone

   Write down the zone number, valve location, any problems observed, voltage readings, and repairs or adjustments made. Note which heads were cleaned, whether the valve operated manually, and any areas that need further attention. Turn off the current zone at the controller and repeat steps one through seven for each remaining zone in your system. Comparing notes across all zones helps identify patterns such as system-wide pressure loss or controller problems affecting multiple zones.

A sprinkler system that fails to water properly wastes resources, damages your lawn, and creates frustration every time you look outside. Most irrigation problems reveal themselves in specific zones rather than affecting the entire system at once. A methodical zone-by-zone troubleshooting walkthroug

Understanding how your system divides water delivery into zones is the foundation of effective troubleshooting. Each zone typically serves a distinct area of your property and operates through its own valve, which opens when the controller sends an electrical signal. Water flows from your main suppl

Before you begin hands-on testing, gather information about your system's layout and recent performance. Locate your controller, note which zones correspond to which areas of your property, and identify any zones that have stopped working or show reduced performance. Walk your property while a zone

The tools and materials you need for a thorough walkthrough are straightforward and inexpensive. A multimeter capable of measuring AC voltage lets you test whether the controller sends power to each zone. A flathead screwdriver helps you manually activate valves and adjust sprinkler heads. A small w

Safety considerations for sprinkler troubleshooting center on electrical connections and underground utilities. Always turn off power to the controller at the circuit breaker before opening the controller cabinet or touching any wiring. Even low-voltage irrigation wiring can deliver a shock, and moi

Prepare Your System for Testing

Start by confirming that water supply to the system is fully open. Locate the main shutoff valve for your irrigation system, which may be near your water meter, inside a basement or crawl space, or in an outdoor valve box. Turn the valve fully counterclockwise to ensure maximum flow. Check that your

Next, inspect your controller and verify it has power. Look for a display or indicator lights that confirm the unit is receiving electricity. Check that the current date and time are correct, since many controllers disable watering programs when power outages reset the clock. Review the programmed r

Conduct a Zone-by-Zone Activation Test

With preparation complete, you are ready to test each zone systematically. The following steps guide you through activating zones, observing performance, testing electrical signals, inspecting valves, checking sprinkler heads, and documenting your findings. Work through every zone even if only one a

Verification and Performance Checks

After completing your zone-by-zone walkthrough, return to any zones that showed problems and verify your observations. Run the suspect zone again and time how long it takes for water to appear after activation. A delay of more than 30 seconds may indicate a valve that opens slowly due to debris or a

Check for uniform coverage by placing several straight-sided containers at various distances from sprinkler heads throughout the zone. Run the zone for 15 minutes, then measure the water depth in each container. Variations greater than 25 percent suggest misaligned heads, incorrect nozzles, or press

Common Problems and Solutions

When an entire zone fails to activate, the issue typically lies in the electrical path from controller to valve or in the valve itself. If your multimeter showed no voltage at the controller terminals for that zone, the controller output has failed and the unit needs professional repair or replaceme

A zone that activates but delivers weak pressure or uneven coverage often has a valve that opens only partially. Debris caught in the valve diaphragm or a torn diaphragm prevents full water flow. You can disassemble the valve by removing the solenoid and bonnet screws, lifting out the diaphragm, and

Individual sprinkler heads that spray erratically or fail to pop up usually need cleaning or adjustment rather than replacement. Unscrew the nozzle and flush it with water to remove sand, grass clippings, or mineral deposits. Use a thin wire or pick to clear clogged orifices, but avoid enlarging the

When to Call a Professional

Stop your troubleshooting and contact a licensed irrigation contractor or plumber if you discover a major pipe break that requires excavation and repair of the mainline or lateral lines. While you can replace a short section of damaged pipe with compression fittings, extensive breaks or leaks near t

Do not attempt to service, test, or repair the backflow preventer yourself. This device must be inspected and certified annually by a technician holding the appropriate backflow-tester certification in your jurisdiction. Tampering with the backflow preventer can compromise your home's water safety a

Call a professional if you encounter wiring problems you cannot trace, such as shorts that trip the controller's circuit breaker or zones that activate when other zones are running. These issues suggest damaged wire insulation, incorrect wiring at the controller or valves, or a failing controller th

Maintain Your Findings and Schedule Follow-Up

Once you have completed your troubleshooting walkthrough, organize your notes into a reference document that lists each zone, its valve location, any problems identified, and repairs or adjustments made. Include measurements such as run times, pressure observations, and coverage test results. This r

Schedule a follow-up inspection two weeks after completing your walkthrough to verify that adjustments have held and no new issues have emerged. Run each zone again and compare performance to your initial observations. Check that repaired heads still spray correctly, cleaned nozzles have not clogged
